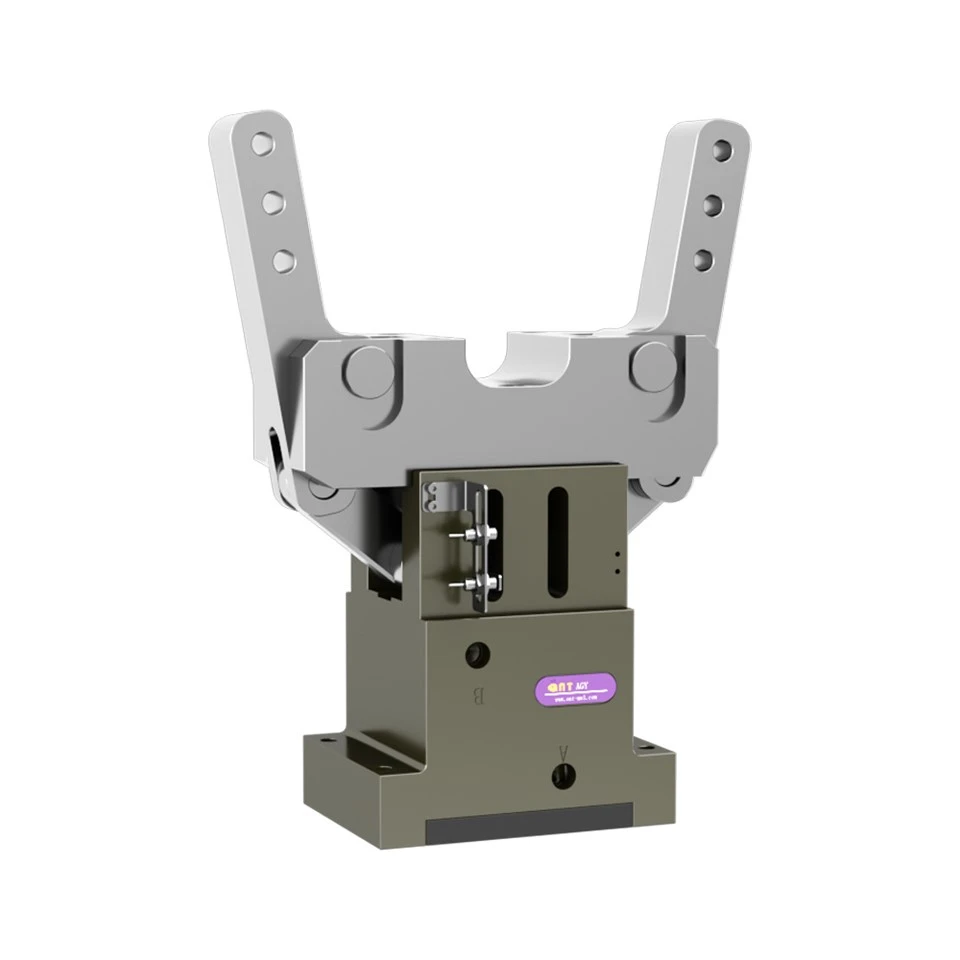

Agy series: Extreme-Environment hydraulic gripping precision a ni.
Agy series hydraulic parallel grippers deliver a nih avangin foundries, forging, leh heavy industrial automation te tan engineer a ni.15kn a ni a, clamping a ni.±1℃repeatability neiin 200℃ambient temperature hnuaiah a awm thei. Integrated 1000 a ni.15℃a adaptive rotation a ni.leh IP64 sealing, he solution hian heavy-Part handling chu die casting, heat treatment, leh metal forming process-ah te a sawifiah thar leh a ni.
Core Technical lam thil chi hrang hrang .
|
Parameter 100 a ni. |
Specification . |
Industry lama hmasawnna . |
|
Hydraulic tuihnai tak tak a awm bawk. |
Filtered ISO VG 46 a ni. |
Zero contamination risk 1.1. |
|
Hnathawh pressure . |
3-10 MPa a ni. |
Standard aiin 230% in a zau zawk a ni. |
|
Max pressure a awm em? |
10 MPa (100 bar) a ni. |
Hydraulic spike a tuar thei bawk. |
|
Oil hman/cycle . |
942 cm3 a ni. |
Inelna nei te aiin 30% in a hniam zawk |
|
Temperature 1000 a ni. |
-20℃atanga +200℃a ni. |
forging furnace hmang thei tur . |
|
Kut zungtang sei zawng . |
500 mm max a ni. |
Handles oversized components . |
|
Finger a load . |
20 kg/jaw a ni. |
Tooling rit tak tak a support . |
Heavy-Duty sealing architecture .
triple-lip FKM seals (200℃rated) a ni a;
labyrinth particle tih loh chu;
Piston rods khauh tak (HRC 60+) tih a ni.
Oversized component hman dan tur .
500mm fingers handle 1.2m diameter parts;
34.5kg taksa rigid taksa hian 15g shock a tuar thei.
Industry hman dan tur dik leh dik loh .
Automotive die casting a ni.
mold atanga aluminum wheel 800℃a lak chhuah;
200℃a thawk chhunzawm zel a, 8MPA-ah a thawk chhunzawm zel.
Turbine blade forging a awm em?
15℃rotation chu forging dies nen a inmil a;
20kg/jaw capacity hian blade 40kg a handle thei a ni.
Steel mill transfer a ni bawk.
IP64 Scale / Tui Ingress laka invenna;
-20℃Cold A bul tanna chu thing lum loah a ni.
Inelna lama hmasawnna te .
|
Capability 1.1. |
agy gripper a ni. |
pneumatic a ni a, a tlukpui . |
Hmasawnna |
|
Temperature 1000 a ni. |
-20℃atanga +200℃a ni. |
-10℃atanga +80℃a ni. |
150% a zau zawk a ni. |
|
Force density 1.1. |
18kn a ni a, 10mpa a ni. |
6kn a ni a, 0.8mpa a ni. |
3× a sang zawk |
|
Enkawlna |
10,000h service a ni. |
2,000h |
5× a sei zawk . |
|
Shock a do theih loh . |
15g vibration a ni a. |
5g |
3× a harsa zawk . |
Integration & Control .
Proportional valve te .
Force control dik tak (0.5-15kn) .
Position feedback .
Analog 0-10V emaw canopen interface emaw a ni thei bawk.
Mounting 100 a ni.
ISO 9409-1 a robot flanges a awm a.
Sensor a inpeih tawh .
Jaw awmna tur M12 connector te a awm bawk.
Technical hmanga tihdikna .
Ford F-150 hmanga thawn chhuahna hmun a ni.
45S/cycle-a 650℃gear blank a handle a;
Thla 18 hnuah zero seal a chhiat chuan.
Rolls-Royce Turbine Forge 1000 a awm a.
15℃rotation hmangin angled extraction a awm thei a;
Heat treatment oven bulah 200℃a thawk thei.
Posco steel mill automation hmanga siam a ni.
IP64 rating hian descaling spray a tuar thei a;
500mm kut zungtang hmangin ton 1-a rit coil a transfer thei.
Operational hlawkna 1.1.
- 30% energy a humhim thei a ni.vs. pneumatic system hrang hrang a awm bawk.
- Hmanrua-Free rotation siamrem dan .(±15℃) a ni.
- Zero pawn lam lubrication .
- 500mm a ni a, a man pawh a to hle.Part deformation tih tlem .
Technical lam thil chi hrang hrang Table .
|
Entawn tlak |
Rotation 100 a ni. |
Max force a ni a. |
Fluid hman dan . |
Buk |
|
agy-100 a ni. |
15℃a ni. |
15kn a ni. |
942 cm3/cycle a ni. |
34.5kg a ni. |
Hydraulic Integration Kit dil rawh .
Manifold block, pressure regulators, leh seamless retrofitting atan mounting brackets te a awm bawk.
