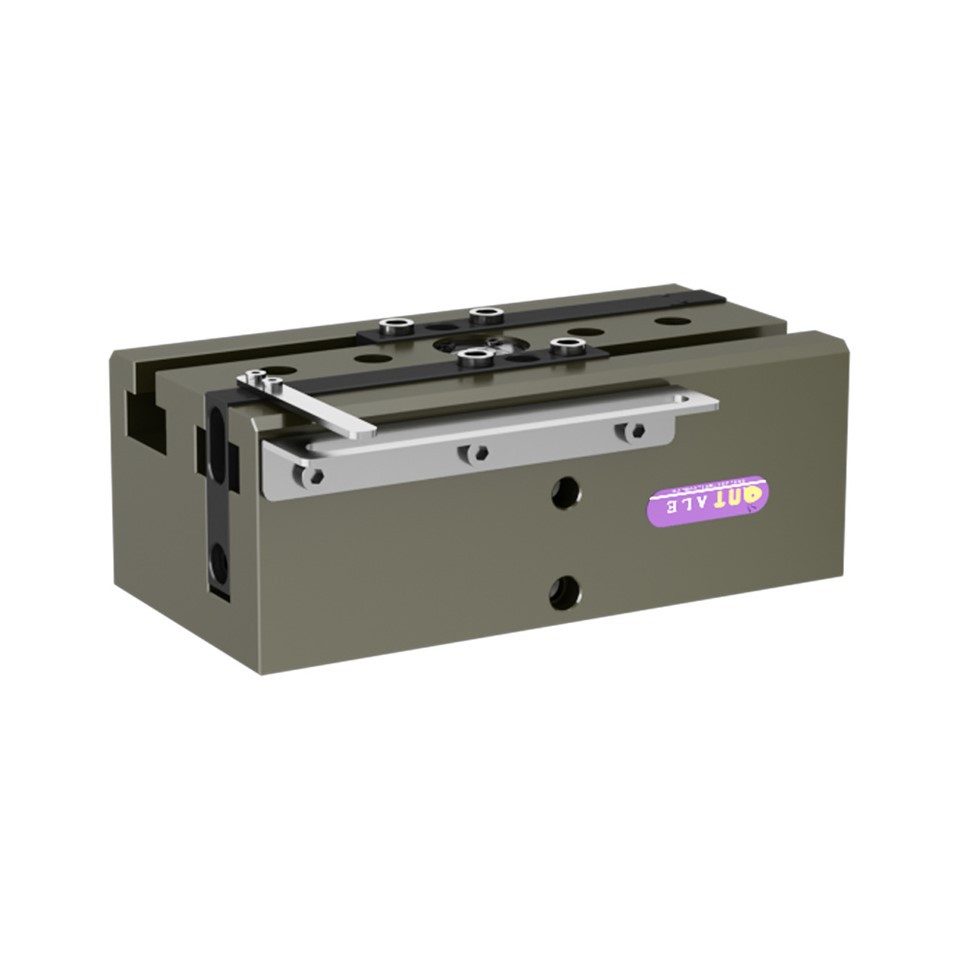

Ale long-stroke parallel gripper: Application mamawh tak takte tan payload reach nasa tak a awm.
Oversized leh irregular workpiece-te tan engineered a ni a, exceptional reach leh industrial clamping force a ngai a ni.
Industrial-Grade performance architecture .
▌ REACH theihna zau tak .
100mm per{{1}jaw stroke 1000 a ni.(200mm total opening) - 3× Industry Standard
a thlawp a ni.250mm custom fingers .Deep-cavity access atan .
a maintain a .±0.05mm parallelism a ni.At full extension .
▌force-Drive system tha tak a ni.
|
Component 1000 a ni. |
Engineering lama hmasawnna . |
|
Power cylinder a awm bawk. |
Oversized circular piston (40% a zau zawk) . |
|
Force atanga chhuak . |
8bar (315kgf) ah 3,096N clamping a awm a. |
|
Kaihhruaina kalphung . |
Hardened t-rails te chu 15kg payload moments an tuar thei ang. |
|
High-Temp option a awm bawk. |
-R version a thawk .hmunah200℃a ni. |
Technical lam thil chi hrang hrang .
► Stroke options: jaw khatah 50mm / 100mm
► Clamping Force: 816N (50mm) / 3,096n (100mm) a ni.
► Payload theih zat: 15kg
► Max kut zungtang sei zawng: 250mm (3.5kg/finger)
► A dik leh dik loh: ±0.05mm
► IP Rating: IP46 (Dust/Liquid Splash Resistant)
► Sensor ready: Inductive proximity detection .
Critical Application Scenarios 1.1.
Automotive siamchhuahna .
Exhaust system (2.5m assemblies) enkawl dan tur.
Paint station hrang hrang inkara kawngkhar panel transfer .
Frame jigs te tan welding fixture loading a awm bawk.
Aerospace composite layup a awm bawk.
Wing spar hmanrua hman dan (8m sei) .
Carbon fiber mold te chu autoclave a loading a ni.
Drilling fixture siam thar lehna tur .
Thil rit tak tak siam chhuah .
Excavator arm section hmanga thil tih theih a ni.
Thli tleh turbine blade root grasping .
Lawng propeller dahna tur hmun .
Glass & Ceramic hmanga siam a ni.
Kiln loading a ni a, a hmunah hian a awm a ni.
Glass sheet tempered te transfer a ni.
Sanitaryware mold hmanga siam a ni a, a man pawh a to hle.
Inelna lama hmasawnna te .
Reach theihna .: 200mm Total opening clears obstacles gripper dangte tih theih loh .
Thermal resilience .: -R version hian paint cure oven/autoclaves a tuar thei lo.
Payload stability .: 15kg capacity chu a kimchangin extension a ni.
Structural integrity .: Reinforced T-Rails hian kut zungtang sei tak tak hmanga deflection a veng thei
Maintenance tihtlem .: Sealed guides te chu abrasive environment an tuar thei .
Tawpna
Ale hian a industry nen large-object automation a siam thar leh a ni-Jaw stroke 100mm per-a hruai a, industrial clamping force (3,096N) tichhe lovin exceptional reach (250mm fingers) a pe chhuak a ni. Oversize piston mechanics leh heavy-duty t-rail guidance te chu a inzawm khawm a, automotive, aerospace, leh heavy industry-a critical material handling challenges a chinfel sak a ni – a bik takin high-temperature environment 200℃thleng a chinfel sak a ni. Conventional grippers hian oversized components te tan handling stage tam tak a mamawhna hmunah chuan ALE hian Single-step manipulation chu IP46 environmental protection hmangin a ti thei a ni. Hei hi gripper mai a ni lo va; I engineered solution a ni a, a mamawh ber chu a lian ber ber-format handling application te hneh theihna tur a ni.
