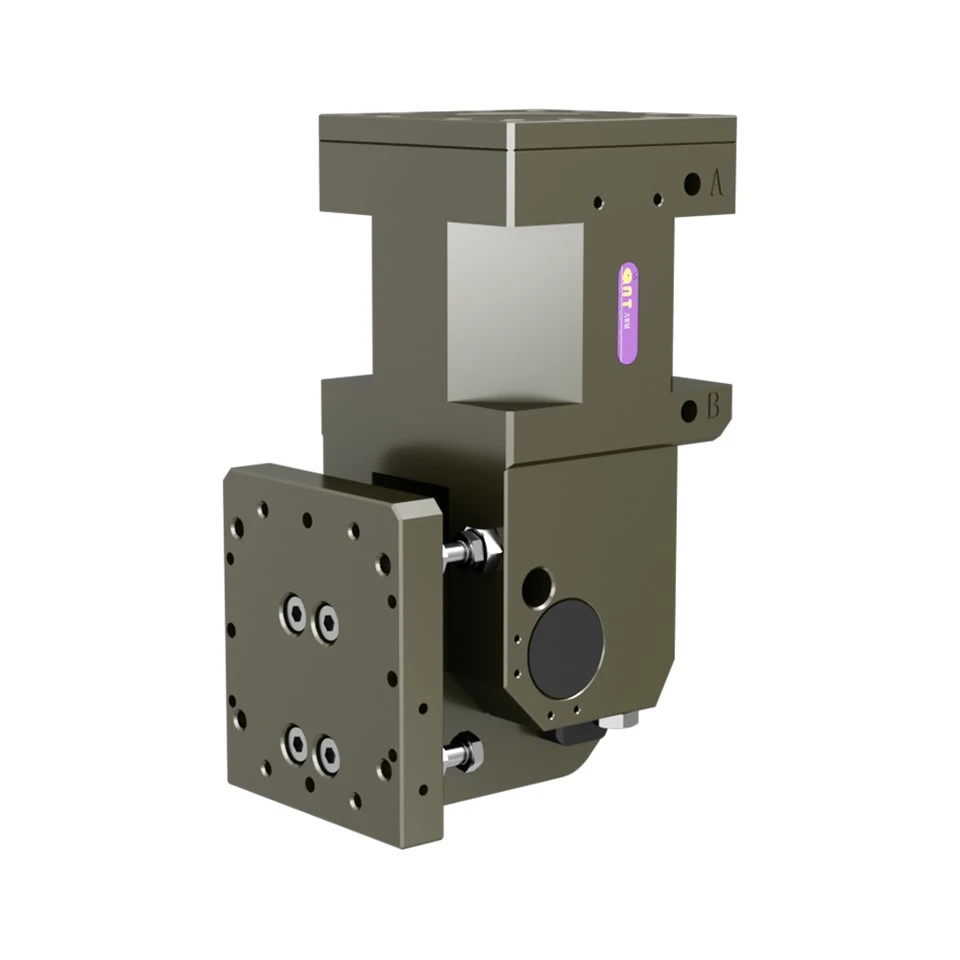

AWM Heavy-Duty Rotary Module : Industrial-Grade Torque chu thil pawimawh tak tak a ni thei ang.
Heavy-workpiece flipping leh positioning atan engineered a ni a, extreme torque leh reliability chu non-negotiable a nih chuan positioning a ni.
Core Engineering lama thil thar chhuah te .
▌ high-Torque dual-direction Drive
○ 270nm a sang ber torque .(AWM125 @6bar) - a sang ber-class pneumatic torque density
○ Asymmetric torque profile:
90℃→0℃a ni.: Gravity-Assist mode (10-45*p) a ni.
0℃→90℃a ni.: Anti-Gravity Mode (9.5-42*p) a ni.
○ Integrated roller bearings .Friction 78% vs bushing designs tihtlem .
▌industrial-Architecture dik lo tak tak .
|
Entawn tlak |
Torque (90℃→0℃) a ni. |
Torque (0℃→90℃) a ni. |
Buk |
A dik leh dik loh . |
|
AWM70 a ni. |
>60 nm a ni. |
>57 nm a ni. |
4.5kg a ni. |
±0.1℃a ni. |
|
AWM90 a ni. |
>105 nm a ni. |
>100.8 nm a ni. |
10kg a ni. |
±0.2℃a ni. |
|
AWM125 a ni. |
>270 nm a ni. |
>252 nm a ni. |
20kg a ni. |
±0.5℃a ni. |
Technical lam thil chi hrang hrang .
► Rotation: 90℃(±2℃a inthlak theih Endpoints)
► Thli hman zat: 486-2282 L/min
► Port size: G1/8 (70/90) / G1/4 (125)
► Pressure range: 3-8 bar (6 bar a thawk thei)
► IP Rating: IP64 (Dust/Tui jet laka inven theih loh)
► A duhthlan theih: Mechanical lock (-), hydraulic buffer ({{1}B)
Critical Heavy-Industry hmanna tur .
Automotive siamchhuahna .
Engine block flipping chu a sir lehlamah machining a ni.
2000T press line-a stamping die rotation a ni.
EV Battery Pack dah leh (AWM125: 150kg payloads)
Foundry & Metalworking tih te pawh a awm bawk.
Shakeout conveyor-a casting rotation .
Forging die lubrication a awm theih dan tur .
Steel ingot a rawn inher hmain a rawn inher chhuak a.
Machinery rit tak tak assembl .
Excavator bucket orientation chu Weld Access atan hman theih a ni.
Thli tleh turbine gearbox in sakna tur rotation .
Hydraulic cylinder barrel tawp lam machining .
Logistics & Material hman dan tur .
IBC tote bin dumping (chemical/powder) a ni.
Scrap metal container a awm a, a chhungah hian .
Palletized load reorientation .
Inelna lama hmasawnna te .
Torque dominance 1000 a ni.: Pneumatic rotator tehkhin theih aiin 40% in a sang zawk
Dual-mode efficiency .: Lifting/lowering atan energy hman dan tur tha ber .
Zero backlash a ni.: Precision Ground Gears hian ±0.1℃a dik a ti a.
Overload himna .: Mechanical stops chu 150% peak torque a tuar thei.
Retrofit a inpeih tawh .: ISO 9409-1 A chhuahna tur hmun a awm lo.
Condition enkawl dan tur .: Position feedback atan magnetic sensor slots a awm bawk.
Tawpna
AWM Rotary Module 1000 a ni.Heavy-part manipulation chu pneumatic torque tluk loh (270nm), intelligent dual-direction power profiles, leh industrial durability (IP64) hmanga siam thar a ni. A asymmetric torque delivery hian energy consumption a ti tha hle – gravity laka a chawi chuan maximum power a pe (0℃→90℃) a, gravity (90℃→0 degree) hmanga puih a nih chuan controlled motion a pe bawk. Automotive, foundry, leh heavy machinery sector-te tan chuan high-payload rotation rintlak tak mamawh a nih avangin AWM series hian hydraulic complexity a ti bo a, chutih rualin response chak zawk leh TCO hniam zawk a pe bawk. Optional mechanical locking leh hydraulic buffering hmangin, he system nghet tak hian precision leh power inzawmna hmuna material reorientation challenges mamawh ber a hneh a ni.
Configuration rawt a ni .
AWM70 a ni.:
<50kg payloads, precision assembly
AWM90 a ni.:
50-100kg Stamping/Forging a ni.
AWM125-BL a ni.:
100-200kg ah buffer/lock a awm a, shock load a awm bawk.
